Air Brake D.O.T. Compression Style Fitting, Tube to Pipe, Brass, Compression 45 Degree Elbow, 1/4"

B620

minimum order

1 piece

Quantity:

CN¥3.82 - CN¥4.17 / piece

Contact Now

add to cart

warranty:3 years
customized support:OEM, ODM, OBM
place of origin:Zhejiang, China
brand name:Angricht
model number:B620
Technic:Other
Connectivity:Female
shape:Round
head code:Hexagon
Surface Treatment:Smooth
Mounting hole diameter:0.25 in
Pipe Features:Flexible
Pipe Class:1000
Application:Automotive Repair
Thread Types:NPT
Product name:DOT Air Brake
Pressure Max:230 PSI (mainly limited by tube's enduring)
Material:Brass

Products Description

Angricht's Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications.
Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant

•Compatible Tubing: SAE J844 Type A & B nylon tubing
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)

Pressure Range:	Up to 150 PSI
Temperature range:	–40° to +200° F (–40° to +93° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing
Applications	• Air Brakes • Air Tanks • Air Ride • Sliders • Tire Inflation • Primary & Secondary Air Lines

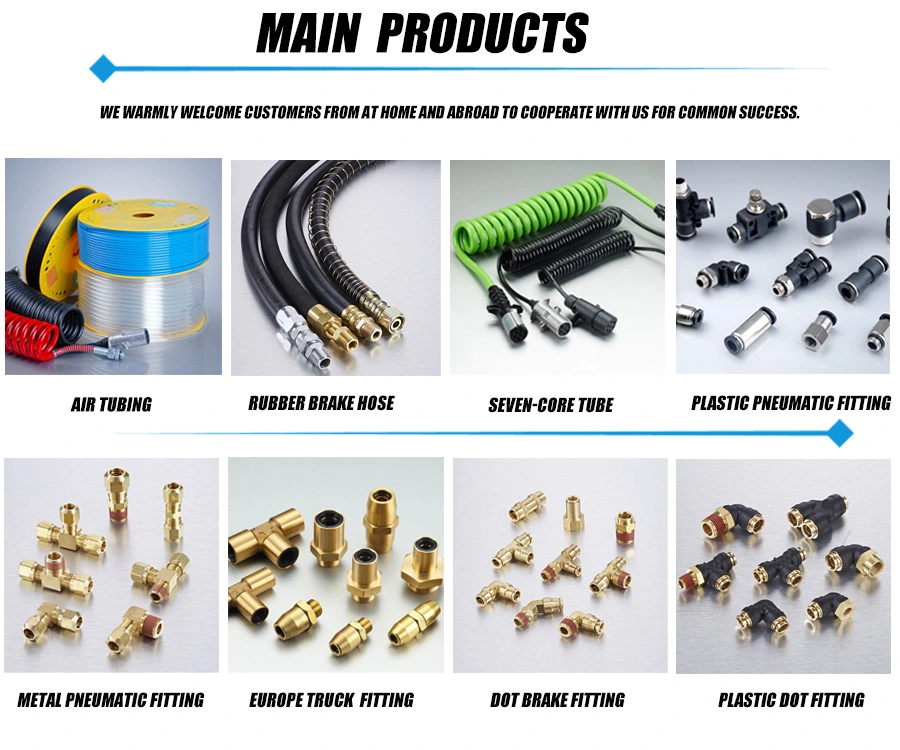

MAIN PRODUCTS

COMPANY PROFILE

WHY CHOOSE US

COMPANY CERTIFICATION

EXHIBITION

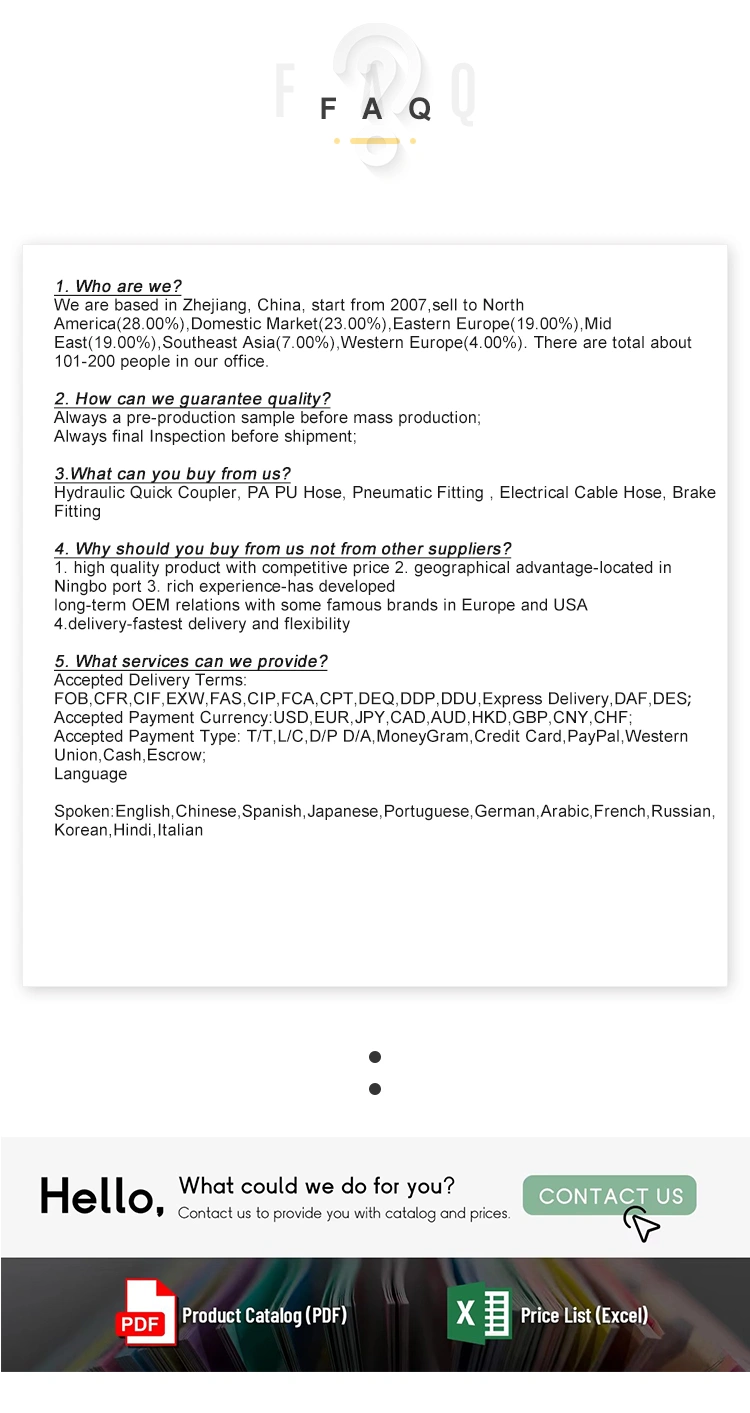

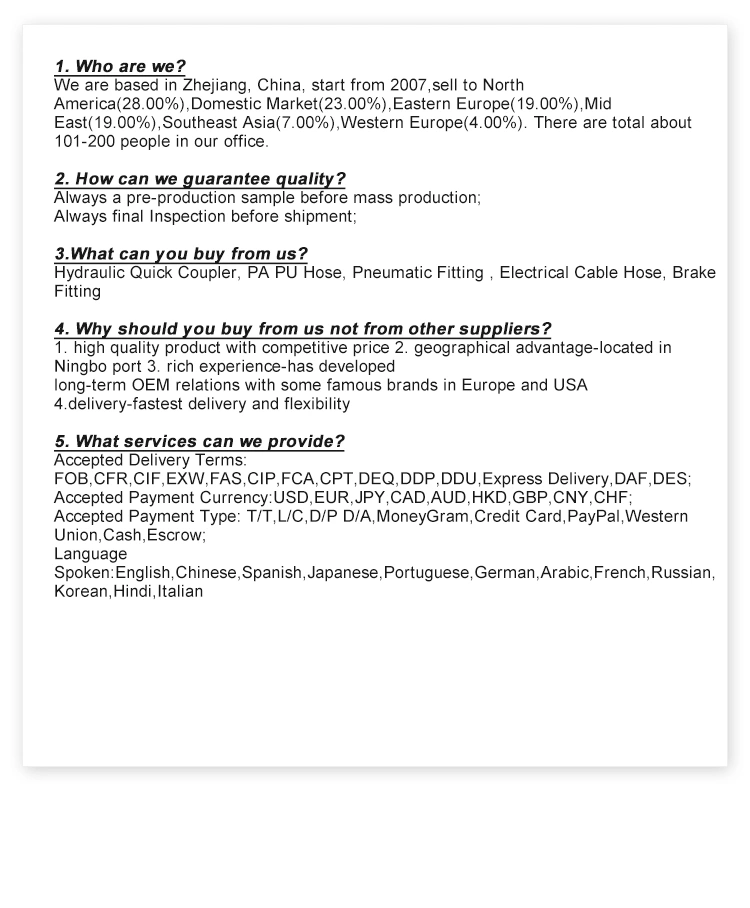

FAQ
