Stainless steel or aluminum quick couplings,hydraulic quick release camlock coupling
- Material:Brass,stainless steel,alumium
- inch size:1/2",3/4",1",1 1/4",1 1/2",2"
- Model Number:A,B,C,D,E,F,DC,DP
- Normal pressure:16-70mpa
- Operating temperature:-30℃-120℃
- Thread type:NPT,PT,PS,DIN
- Technics:Casting
- Connection:Male
- Shape:Equal
- Head Code:circle
- Place of Origin:CN;ZHE
- Brand Name:Angricht
- Model Number:E201
Description:E201 is easy to be connected and disconnected with nice appearance and good corrosion resistance. Safe for operation through self-locking connection.

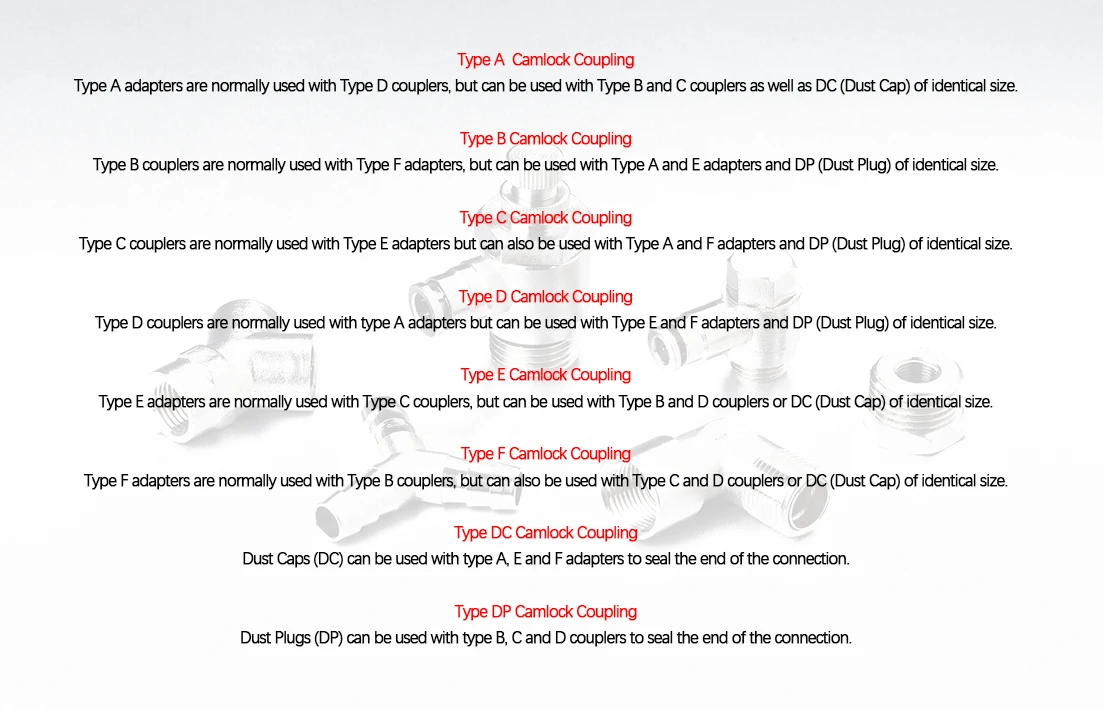

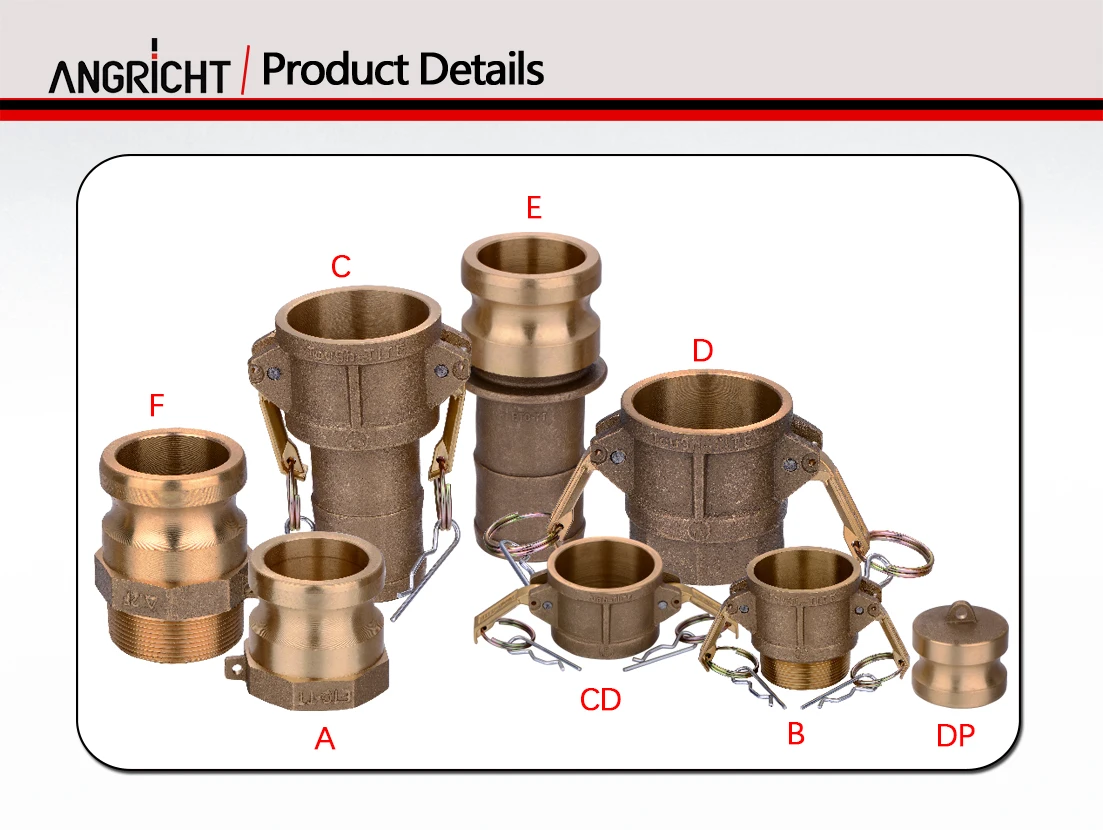

Iitem No.: A B C D E F DC DP
Material:Brass, stainless steel 304/316, aluminum
SIZE
| 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' | 2 1/2'' | 3'' | 4'' | 5'' | 6'' |
Applicaton and features
* Normal presure:16-70Bar, many differs from different items
*Operating temperature:-30~+120
*Application: for oil, gas, vacuum, grease, acid, water plus transport and sealing purpose in auto parts, ship manufacturing industry aerospace industry chemical industry traffic industry power industry centralied heating industry etc
* Thread specification: NPT, PT, SP, DIN
*Connection method: Threaded fitting, flare fitting, welding bite-type fittig, mechanical grip fitting, crimp fitting, end fitting, push-to connect, etc.
Q1: Factory or trading company? Own Brand or not?
Q2: How can I get some samples? And what is the lead time?
Q3: How does your factory do regarding quality control?
Q4: Can you provide any certification?
Q5:Why do you choose Angricht as your long term supplier?
